Large-Scale Measurement Problems Teams Misjudge
A measurement error that seems minor on a machined bracket creates a serious alignment problem across an aircraft fuselage or ship section. Scale changes the way uncertainty behaves because distance magnifies thermal effects and setup weaknesses. Yet many production plans treat large-volume inspection as an oversized version of ordinary dimensional control. The result is that large-scale measurement problems teams misjudge tend to appear late, when correction is expensive, and assembly options are limited.
Accuracy Is Not the Same as Usable Certainty
Instrument accuracy receives considerable attention during equipment selection, but a published specification does not describe the certainty of every measurement made on the floor. Actual results depend heavily on setup geometry and environmental compensation. Target placement and reference stability add further uncertainty. A tracker with excellent specifications will still produce weak evidence when the measurement plan ignores those conditions.
Large-scale manufacturers need an uncertainty budget tied to the task. It shouldn’t be a general belief that the instrument is accurate enough. Locating a fixture point requires different certainty than verifying a mating surface. Therefore, the team should define the decision each measurement must support before selecting the method. The step prevents precision from being confused with confidence.
Temperature Effects Grow With the Structure
Thermal expansion is easy to underestimate because a temperature change gives the impression of being small. Across a long steel assembly, however, a modest shift in material temperature moves features far enough to affect alignment or acceptance. A wall sensor does not capture the full thermal condition. The structure and nearby tooling sometimes sit at different temperatures after welding or transport.
A reliable plan accounts for material temperature at meaningful locations and allows time for stabilization when the process permits it. Compensation settings must reflect the material's coefficient of thermal expansion. Atmospheric conditions also influence the refractive index along the laser path. When those values are poorly measured, the correction process creates a false sense of control instead of reducing uncertainty.
Line of Sight Is a Production Constraint
Laser trackers depend on a clear optical path to a reflector or probing system. Teams sometimes treat line of sight as an operator inconvenience, but it shapes the entire inspection sequence. Shop structures sometimes block the beam when a critical feature becomes accessible. Repositioning the tracker then requires the team to preserve a common coordinate system across stations.
The measurement plan should be developed alongside the assembly plan, not after the work area is crowded. Tracker locations must provide access to the required features without forcing unstable setups or repeated interruptions. When hidden geometry remains unavoidable, probing or direct scanning sometimes outperforms a reflector-only approach. The decision to choose the right laser tracker for your needs should therefore begin with the true measurement volume and access conditions.
Datum Strategy Breaks Down Across Distance
A large structure rarely offers one perfect physical reference that remains accessible throughout production. Teams sometimes establish coordinates from tooling at one stage, then switch to part features after the assembly moves. If those reference schemes are not connected deliberately, each transition introduces the possibility of a coordinate shift that looks like part movement.
A stronger approach defines how datums will survive fixture changes and station moves. Stable reference nests preserve continuity when their locations remain protected and verified. The transformation between measurement stations should use geometry spread across the working volume. Poorly distributed references weaken the network and hide rotational error at the far end.
More Points Do Not Guarantee Better Evidence

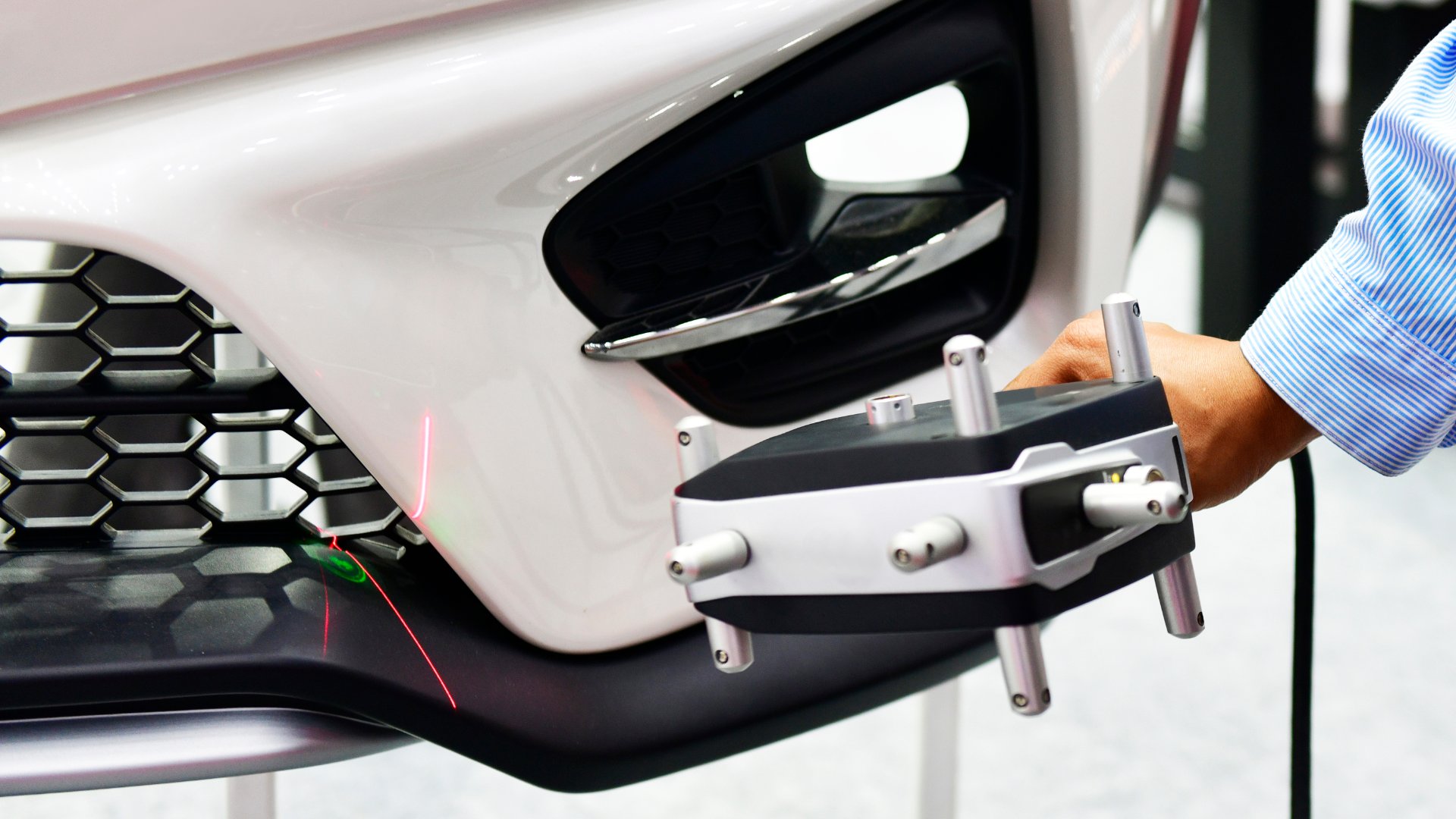

Dense data looks persuasive when software produces a detailed color map. Yet thousands of points do not correct weak alignment or uncontrolled temperature. A scan might describe a surface yet miss the relationship between two interfaces. Conversely, a small set of carefully chosen points sometimes answers an assembly question with greater clarity.
The inspection method should match the feature being controlled. Surface form justifies scanning, whereas hole position requires discrete high-accuracy measurements. Filtering and smoothing settings need equal scrutiny because they influence the displayed result. Teams should preserve the raw data and document the processing choices so later reviews separate geometry from software treatment.
Measurement Timing Changes the Result
Large assemblies are rarely static throughout production. Welding introduces heat and residual stress. Heavy components settle on their supports, and fixtures respond to the changing load. Measuring too early captures a temporary condition. Measuring too late reveals a deviation only after surrounding work has locked the structure in place.
Inspection timing should correspond to process states that are repeatable and useful for decisions. A measurement taken after tack welding serves a different purpose from one taken after final weld cooling. Likewise, an alignment check before load transfer cannot substitute for verification under the final support condition. Clear hold points allow production and quality teams to act before deviation turns into rework.
Operator Technique Still Controls Repeatability
Automation has reduced some sources of variation, but operator practice remains central in portable metrology. Reflector seating and probe orientation affect results directly. Target cleanliness and instrument stability introduce further variation. A rushed setup might pass an internal check yet fail to reproduce when another shift repeats the work.
Training should focus on the complete procedure rather than software navigation alone. Operators need to understand why a target must seat consistently and why reference geometry must be rechecked after a disruption. Written routines should define setup verification and environmental logging. They should explain recovery after beam loss or tracker movement as a separate process. When those steps are treated as production controls, repeatability improves across shifts and projects.
Data Handoffs Create Their Own Errors
Measurement does not end when coordinates appear on a screen. Results must move into engineering and assembly systems without losing their reference frame. Quality records must retain the correct revision context. A report based on an outdated CAD model might remain internally consistent yet operationally wrong. Confusion follows when nominal data and shop instructions use different coordinate conventions.
Every report should identify the model revision and alignment method. Units, environmental conditions, and measurement time need clear documentation without being buried in the file. Deviations require enough context to distinguish part geometry from setup conditions. Consistent naming and approval rules reduce the chance that an old dataset drives a current adjustment. In large-scale work, information control is part of dimensional control.
Large-volume metrology succeeds when measurement is planned as part of manufacturing. The strongest systems connect instrument capability with controlled conditions and stable references. Decisions must then occur at a useful production stage.
Discipline keeps large-scale measurement problems that teams misjudge from turning into late alignment failures or disputed acceptance results. Accurate equipment remains essential, but reliable outcomes depend on how the entire measurement process is designed.
